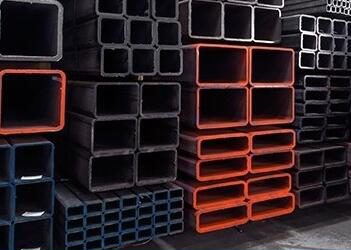

ASTM 500 Hollow Section Steel Pipe
Introduction
Specification
Application: ASTM A500/ A501 is a standard specification for cold-formed welded and seamless carbon steel structural tubing in round, square and rectangular shapes.
| Specifications | Range |
| Widths | 8" X 6" - 16" X 8" |
| Wall Thickness | 0.250" - 0.500" |
Chemical Component(%)
Mechanical Properties Min (MPa)
| Grade | C | M | P | S | Cu |
| Gr.A | 0.26 | 1.35 | 0.035 | 0.035 | 0.20 |
| Gr.B | 0.30 | 1.40 | 0.045 | 0.045 | 0.18 |
| Gr.C | 0.23 | 1.35 | 0.035 | 0.035 | 0.20 |
| Gr.D | 0.27 | 1.40 | 0.045 | 0.045 | 0.18 |
| Grade | Tensile Strength | Yield Strength | Elongation |
| Gr.A | 310 | 230 | 25 |
| Gr.B | 400 | 290 | 23 |
| Gr.C | 425 | 315 | 21 |
| Gr.D | 400 | 250 | 23 |
